What Is a Wafer Chuck?


December 6, 2021

Shop Now

Since the semiconductor industry is increasingly diversifying into other applications, different types of wafers are used for producing a wide variety of new products. As a result, the humble chuck plate that holds the InP wafer in place throughout the front-end processing is constantly adapting to meet the requirements of various applications.

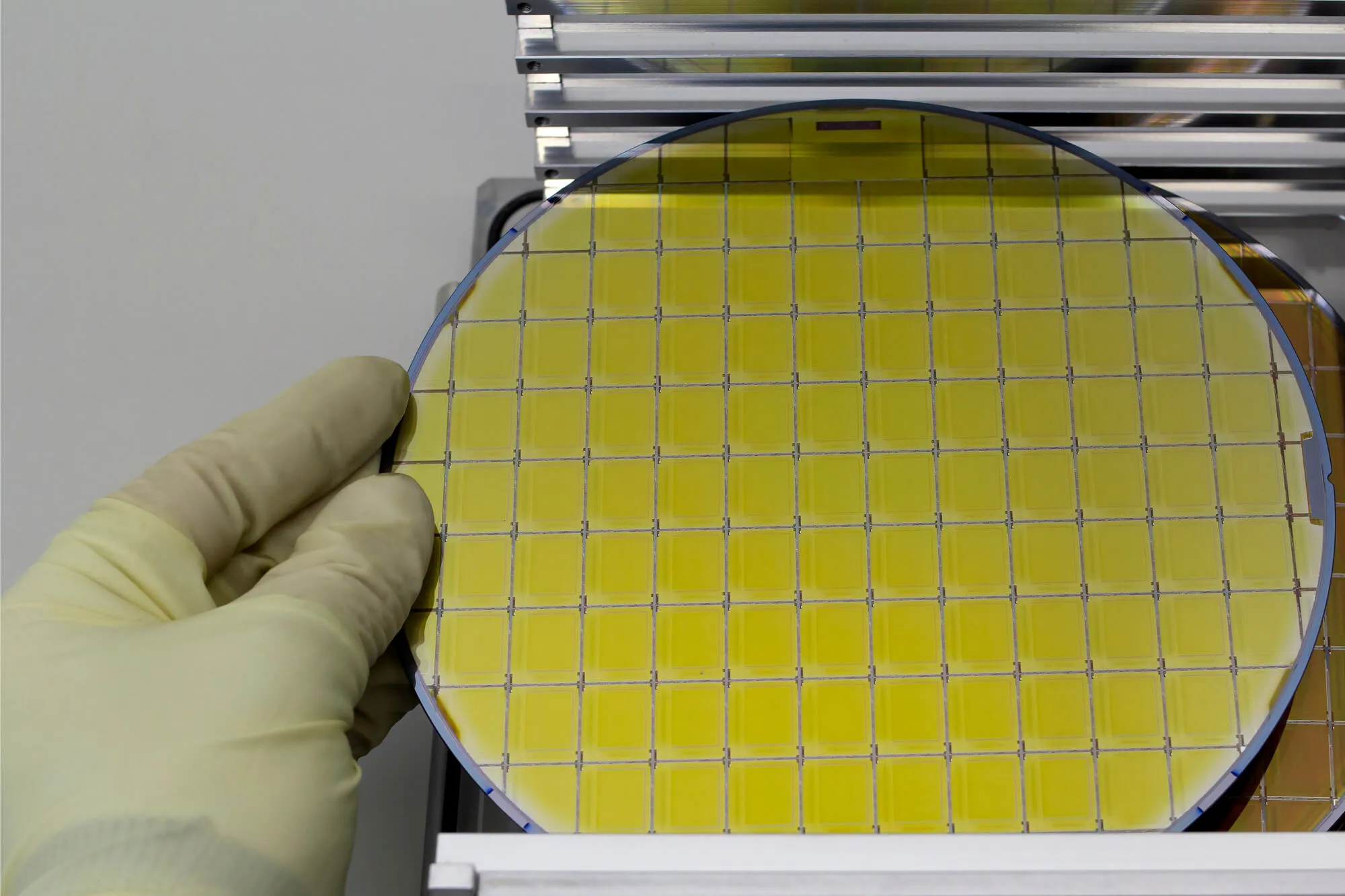

Sample InP Wafer

A Closer Look at the Wafer Chuck

What Is It?

A wafer chuck is a plate on which wafers are securely mounted during wafer processing applications. Wafer chucks are crucial in wafer manufacturing and sorting in cleanroom environments. 

What Does It Look Like?

Substrates for flat panel displays, optical windows, hard disk drives, or photonic applications require square or rectangular wafer chucks. Although chucks come in various shapes, sizes, and materials, they’re usually round and slightly larger than the size of a wafer.

How Does It Work?

In most cases, chucks have circular vacuum grooves or patterns comprised of micro-holes that enable them to fasten the wafers in place. Lift pins fitted into the chuck assembly allow the plates to automatically raise and lower the wafers throughout the wafer manufacturing and testing process.

What Is It Made of?

Since different types of base materials are used to manufacture chuck plates, the thermal conductivity varies greatly. Most manufacturers prefer aluminum chuck plates because of their superior thermal conductivity and cost. However, some applications require wafer chucks made from brass, bronze, stainless steel, copper, ceramics, or glass.

What’s more, wafer chucks also have a wide variety of insulating or conductive surfaces. Coating options include anodized aluminum, zinc, gold, or nickel plating. Although their base material and coating may vary, the range of their flatness specification is usually within 4 µm to 10 µm.

High-quality InP Wafer

Are You Looking for a Top-quality InP Wafer?

At Wafer World, we manufacture high-quality wafers at a reasonable price. Contact us today to request a quote.
