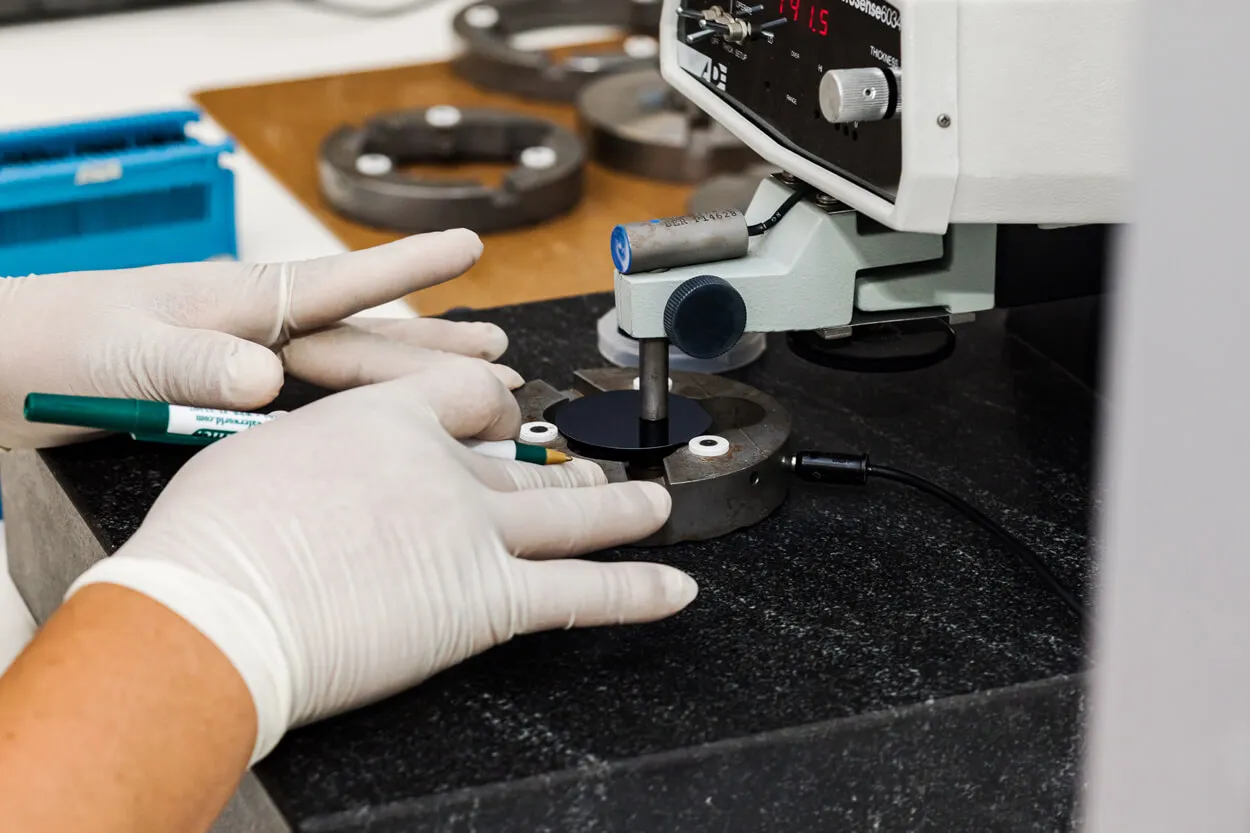

Reclaim InP Silicon Wafer

GaAs + InP Reclaim

If you are looking for semiconductor wafers for high temperature and radiation uses, you’ll be glad to know that there are several cost-saving options available. Wafer World is proud to offer high-quality brand new or reclaimed GaAs+ InP wafers for all your desired applications.

Shop Now

Wafers can be processed more than once for additional savings. The cost of prime wafers has led to the rise of companies opting to recycle wafers. Wafer World recycles wafers up to 150mm diameter with a 3-step polishing process for high quality finished product.

Wafers can be processed more than once for additional savings. The cost of prime wafers has led to the rise of companies opting to recycle wafers. Wafer World recycles wafers up to 150mm diameter with a 3-step polishing process for high quality finished product.

“GaAs industry leaders and satisfied Wafer World, Inc. reclaim customers.”

GaAs device demand will continue to see growth through 2014

“Compound Semiconductor”

“October 2010, vol. 16, number 7, pg 8”

The GaAs market staged a strong recovery toward the end of a tumultuous 2009 as a result of positive trends in wireless markets. The Strategy Analytics GaAs and Semiconductor Technologies (GaAs) service report, “GaAs Industry Forecast 2009-2014,” calculates that despite a recession, GaAs industry revenues managed to escape a drop in 2009, with a strong performance in the second half of the year translating to year-on-year revenues remaining flat at $3.7 billion.

GaAs technology will maintain its position as the enabling technology for next generation cellular handsets. The smartphone category of the handset market, in particular, provided a vital lifeline in 2009, boasting stronger than average annual growth in terminal volumes.

With an increasing average number of GaAs power amplifiers per terminal as well as increasing switch complexity in this sector, GaAs device demand from next generation handsets will grow faster than overall industry revenue growth.

“Our analysis incorporates individual wireless, consumer, infrastructure and defense market forecasts- taking into account technology trends,” noted Asif Anwar at Strategy Analytics. “There is no question that the improving capabilities of silicon and silicon germanium technologies, as well as emerging technologies such as gallium nitride, will provide increasing competition for GaAs technologies.”

“Despite this competition, GaAs device demand will continue to see continued growth through 2014. The market will grow at a compound annual growth rate of 5% to be worth over $4.7 billion,” concluded Anwar.

Reclamation of GaAs Wafers by Chemical Stripping & Polishing

“Harvey Kitzmiller, Process Engineer & Sean Quinn, CEO Wafer World, Inc., West Palm Beach, Florida, USA”

Gallium Arsenide (GaAs) is one of the most important compound semiconductor materials in the world- it has wide applications in wireless, opto-electronics, and Solar Cells. As a cost-savings measure, companies are forced to re-use substrates when feasible. Most of the major GaAs companies in the Unites States have reclaimed 4” and 6” GaAs wafers for many years. Diameters of 2”, 3”, 4”, 5”and 6” wafers can be processed and re-polished. Process Monitor wafers or production-rejects can be reclaimed 2-3 times and used as test grade material. Wafers with layers consisting of epitaxy, photo-resist, metal coating, dielectrics, etc. can be reclaimed 2-3 times.

The process flow chart for reclaim wafers at Wafer World, Inc. is presented. The economical benefits for reclamation of GaAs wafers are discussed in this paper as well.

GaAs Reclaim Process Flow Diagram

  • Sort wafer for different coating layers
  • Acid stripping 
  • Photo resistant stripping  
  • Au Etch 
  • Wafer cleaning with a specialized mixture (Ammonia +H2O2 + H2O) 
  • Sort and regroup by the thickness  
  • Rough polish of wafer front-side 
  • Final polish of wafer front-side 
  • Cleaning polish of wafer front-side 
  • Final inspection and packaging 

GaAs Recycling Resources

“Thomas Mirandi, et al, Tom@www.waferworld.com”

The Effects of Chemical Treatment and Storage Time on the Surface Chemistry of Semi-Insulating Gallium Arsenide, CS MANTECH DIGEST, 2009, Tampa

GaAs Physical Properties

Characteristic
Unit
GaAs
InP
Si
Crystal Structure
Zinc-blend
Zinc-blend
Diamond Type
Lattice constant
nm
0.5654
0.5869
0.543
Melting point
°C
1,238
1,062
1,417
Dissociation pressure
atm
0.9
25
~10-7
Density
g/cm3
5.316
4.787
2.33
Maximum proximity atom interval
nm
0.245
0.254
0.235
Atomic concentration
atom.cm3
4.43*1022
3.96*1022
Relative dilectric constant
11.1
12
Heat expansion coefficient
1/K
5.93*10-6
4.5*10-6
2.33*10-6
Band gap
eV
1.4
1.35
1.11
Changed type
Direct
Direct
Indirect
The degree of electronic movement
cm2/V.sec
10,000
5,000
1,400
The degree of electron hole movement
cm2/V.sec
450
150
380
Effective electronic mass
0.068
0.067
0.44
Intrinsic electronic concentration
cm-3/V.sec
1.8*106
1.6*107
The rate of intrinsic resistance
Ω.cm
3.8*108
8.2*107
The degree of head conduction
W/cm.K
0.455
0.7
1.57
Specific heat
cal/g.K
0.086
0.073
0.167
Ionicity
0.31
0.421
Knoop hardness
kg/m2
680~750
341~430
Laminating defective energy
meV/atom
43±3
17±3

Are You Interested in Reclaiming Your GaAs+InP Wafers?

At Wafer World, we boast decades of experience and cutting-edge equipment that have allowed us to perfect our process. You can trust the quality of our products to deliver the desired result. Get in touch today for a quote or to learn more about our company!
