Purity can seem like a straightforward specification until a semiconductor application places strict demands on the electrical behavior of its substrate. Small concentrations of unwanted elements can matter when engineers need controlled resistivity, dependable crystal characteristics, or predictable performance.
A float zone wafer is produced by a crystal-growth method that avoids the direct use of a crucible to contain molten silicon during the refining zone, helping to limit certain contamination pathways. That distinction makes material purity an important part of wafer selection, especially when the substrate will be used in applications where unwanted impurities could interfere with the properties engineers are trying to control.

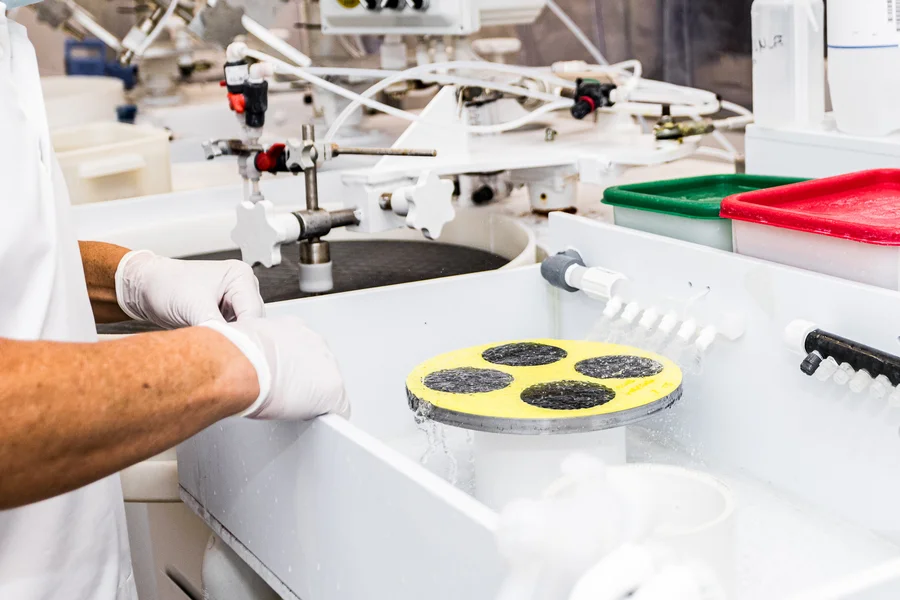

A wafer can look exceptionally clean while still containing impurities within its crystal structure. Surface cleanliness and bulk material purity are separate considerations. Cleaning procedures address particles, residues, and contaminants on the wafer surface. At the same time, crystal growth methods influence which impurities may be incorporated into the silicon itself.
This distinction is important because semiconductor performance begins below the polished surface. Elements present within the bulk material may influence electrical characteristics even when the wafer has excellent surface quality. For applications with demanding electrical requirements, engineers therefore need to consider what is inside the crystal, not simply what can be observed during visual inspection.
Purity should also be interpreted within the context of the intended application. A substrate does not need to be described with vague terms such as "ultra-pure" when measurable characteristics can provide more useful information. Oxygen concentration, carbon concentration, resistivity, conductivity type, crystal orientation, and other specified properties can help buyers determine whether a particular material is suitable.
One reason float-zone silicon receives attention in purity-sensitive applications is the way the crystal is produced. During float-zone processing, a narrow molten region travels through a silicon rod rather than being contained within a conventional crucible.
Avoiding direct contact with a crucible changes the opportunities for impurities to enter the material. This is particularly relevant when comparing float-zone material with silicon grown using the Czochralski method, which involves a silica crucible. The growth environment can influence oxygen incorporation, making the production method an important consideration when defining purity requirements.
The moving molten zone also plays a role in refining the material. Impurities do not necessarily distribute equally between solid and molten silicon, allowing certain contaminants to be redistributed as the molten region moves through the rod. The effectiveness varies by impurity, so the process should not be interpreted as completely removing every unwanted element.
Oxygen is one of the most discussed impurities when comparing silicon crystal-growth methods. NIST documentation for its silicon oxygen Standard Reference Material has used float-zone specimens as low-oxygen references. Historical NIST material also documents float-zone silicon specimens with very low oxygen concentration compared with oxygen-containing Czochralski specimens.
Low oxygen can be desirable for applications where engineers want to minimize oxygen-related effects in bulk silicon. At the same time, oxygen is not universally undesirable in every semiconductor process. Its role depends on the application, which is why selecting material based only on a general statement about purity can overlook important engineering considerations.
Silicon wafers are not passive mechanical platforms. Their electrical properties are fundamental to many devices, and impurities can affect those properties. Intentional dopants are introduced to achieve desired conductivity characteristics. In contrast, unwanted impurities may introduce behavior that was not part of the device design.
This difference between intentional doping and unintended contamination is central to wafer selection. High-purity silicon still may be intentionally doped to achieve a specified conductivity type or resistivity range. Purity does not mean the complete absence of every element other than silicon. Instead, it means controlling unwanted impurities while managing desired electrical characteristics according to the application.
High-resistivity silicon is used in applications where the substrate's electrical behavior is important. Achieving and maintaining the desired resistivity requires careful control over electrically active impurities.
For this reason, buyers considering high-resistivity material should evaluate the actual resistivity specification rather than assuming that the crystal-growth method alone guarantees a specific value. Growth technique, doping, impurity concentration, and the requested wafer specification all contribute to the final material characteristics.
Purity is valuable because it provides a controlled foundation. The required electrical result still needs to be defined, measured, and confirmed for the intended use.
Chemical purity is not the only quality characteristic worth considering. Crystal structure also matters. A wafer intended for precision applications should be evaluated according to the structural characteristics relevant to its use.
NIST has used high-quality float-zone silicon for precision lattice-spacing measurements. Its research on modern intrinsic material reported very small lattice-spacing variability among the silicon crystals studied. NIST has also described incoming float-zone boules used for Standard Reference Material production as nearly perfect crystals with very low strain and defect density, as verified by lattice-spacing measurements.
These examples show why purity and crystal quality are related considerations but should not be treated as interchangeable. A meaningful specification may need to address electrical properties, crystallographic characteristics, dimensions, surface conditions, and impurity levels separately.
A productive wafer-selection process starts with the device or experiment rather than a generic purity label. Engineers can identify which substrate characteristics are likely to influence the work and then request documentation that corresponds to those requirements.
Useful points to review can include:
This type of checklist helps separate meaningful specifications from assumptions. It also gives suppliers clearer information when identifying appropriate material.
Test Data Should Match the Requirement
A number on a specification sheet is useful only when it corresponds to the property that actually matters. If oxygen concentration is critical, oxygen data may be relevant. If electrical behavior is the priority, resistivity information becomes essential. If crystal perfection is important, structural characterization may deserve additional attention.

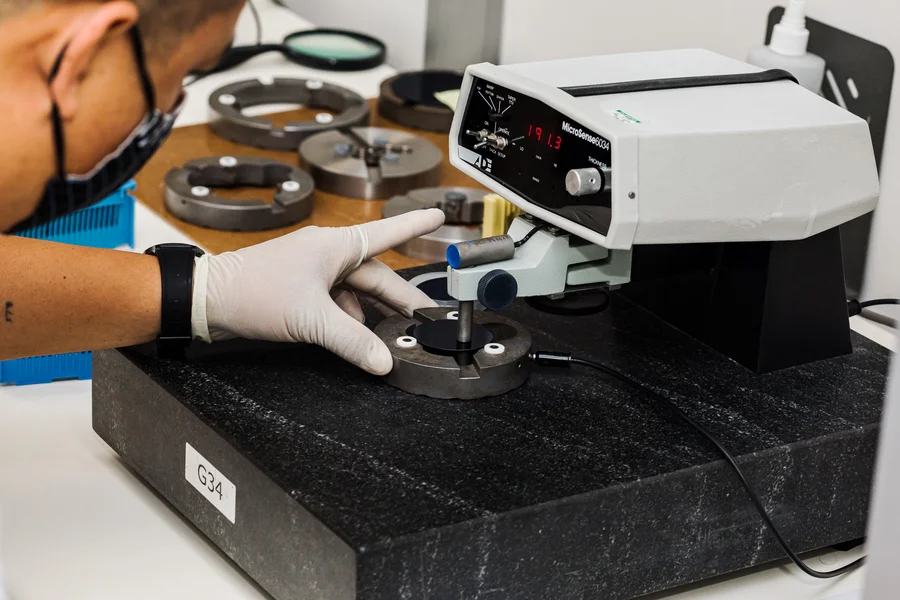

Measurement methods also matter because different techniques evaluate different characteristics. NIST has developed and documented methods for measuring properties of semiconductor silicon, including oxygen concentration and precise lattice spacing. This reinforces the value of defining both the property and the method used to evaluate it.
It can be tempting to assume that the purest available material is automatically the best option. Semiconductor purchasing is more practical when purity is treated as one of several requirements.
For example, a research project investigating bulk electrical properties may prioritize resistivity and impurity control differently from a process focused primarily on mechanical handling or surface development. Another application may require specific dimensions, orientation, polishing, or dopant characteristics, as well as low impurity concentrations.
The better approach is to work backward from the process. Determine which substrate properties can affect the intended result, establish realistic acceptance criteria, and compare available material against those criteria. This prevents purity from becoming a marketing label without a clear technical purpose.
Repeatability becomes especially important when a project moves from initial testing into continuing production. A wafer that performs well in one experiment may not be enough if later lots differ in properties that matter to the process.
Clear purchasing specifications can reduce this uncertainty. Documenting requirements for resistivity, orientation, dimensions, surface condition, and relevant impurity limits gives both buyers and suppliers a consistent reference point.
Material selection should also account for which characteristics require verification. When engineers know what needs to remain consistent from lot to lot, incoming inspection and supplier documentation can focus on the properties with the greatest impact on the process. This creates a more useful quality strategy than relying solely on a broad purity description.
Not automatically. Higher purity can be important for applications sensitive to unwanted impurities, but device performance depends on many factors. Resistivity, doping, orientation, surface condition, geometry, fabrication conditions, and device design may all contribute. The correct material is the one whose verified properties fit the specific application.
Oxygen is relevant because crystal growth methods can influence the extent to which it is incorporated into silicon. Float-zone processing avoids a silica crucible around the molten refining zone, which helps distinguish it from crucible-based growth. NIST has used float-zone silicon as a low-oxygen reference material when measuring oxygen in semiconductor silicon.
No. The concepts are related but not identical. Resistivity is an electrical property, while purity describes the presence or absence of unwanted material within the crystal. Doping is intentionally controlled to produce desired electrical characteristics, so buyers should specify the required resistivity rather than infer it from a general purity description.
Start with the requirements that directly affect the intended process. These may include resistivity, conductivity type, orientation, diameter, thickness, polishing, and impurity-related specifications. When a particular characteristic is critical, buyers should also determine what measurement or documentation is needed to verify it.
Choosing a float zone wafer becomes easier when purity is considered alongside the electrical, dimensional, crystallographic, and surface requirements that matter to your application. Wafer World can help you review available substrate options without reducing a technical decision to a single specification.
Contact us to schedule a consultation and discuss the wafer characteristics your next project requires.
